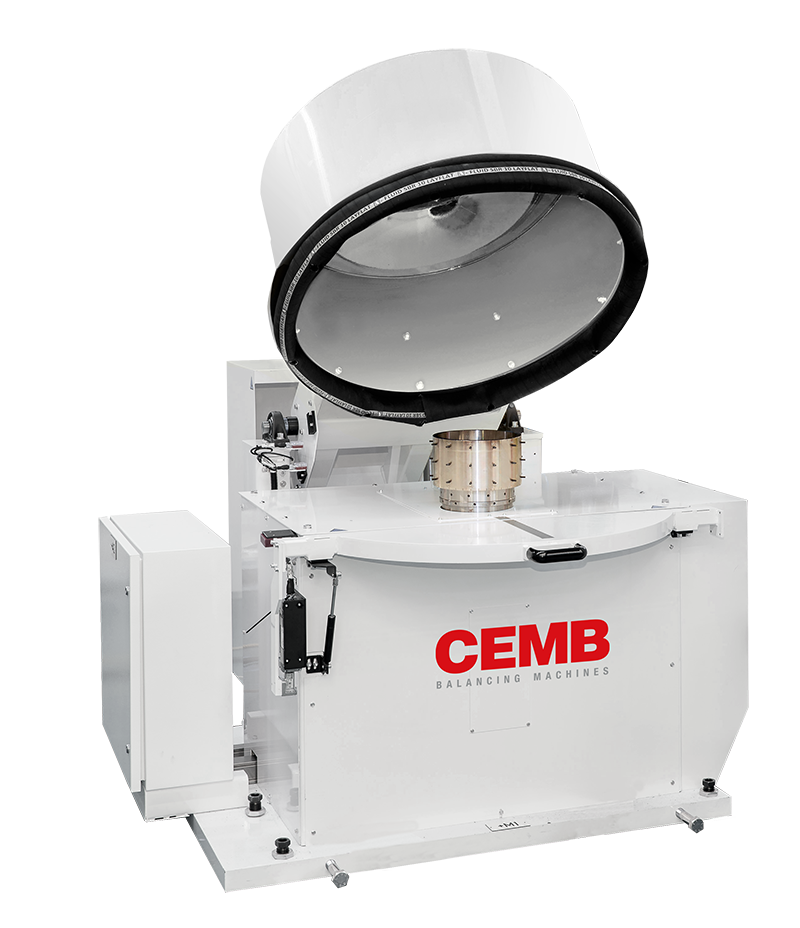

Vibration Equipment Division Vertical axis balancer for aircraft rotors
CEMB’s vertical axis balancing machine for turbines and aircraft components is SAE-compliant and designed for applications in OEM lines and MRO maintenance centers. It provides repeatability, operator safety, and advanced analysis for the aviation industry.
Features
- Unbalanced measurement according to SAE ARP4050 and ARP4162, suitable for high-speed rotating components with minimal tolerance.

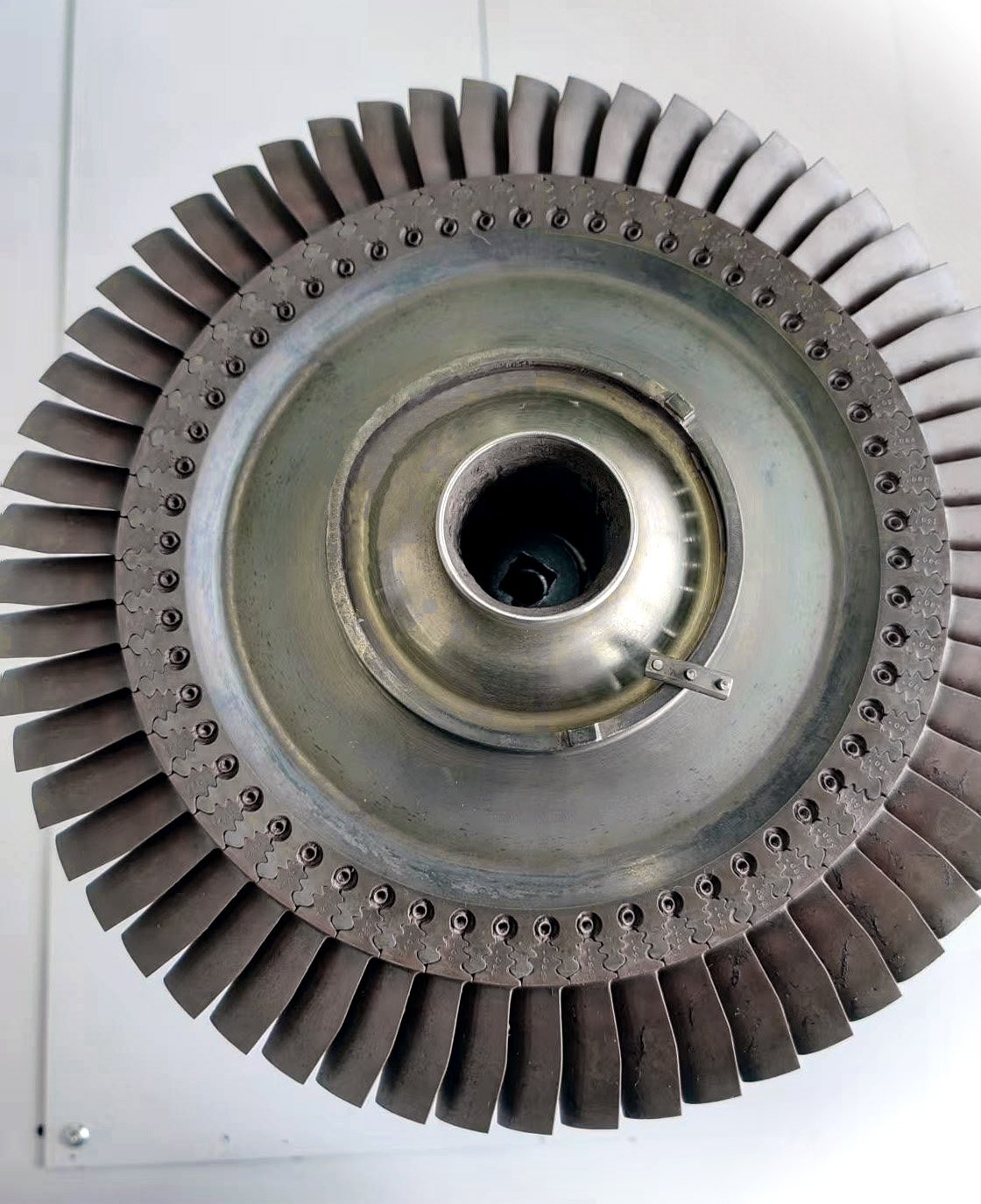

- Optimal vertical configuration for turbines, disks, compressors, propellers and turbo fans. Perfect centering and process repeatability, even for complex geometries.
- Designed for OEM line and maintenance center (MRO) applications, with flexibility for new or remanufactured components.
- Special software for aviation industry and integration with MES systems.

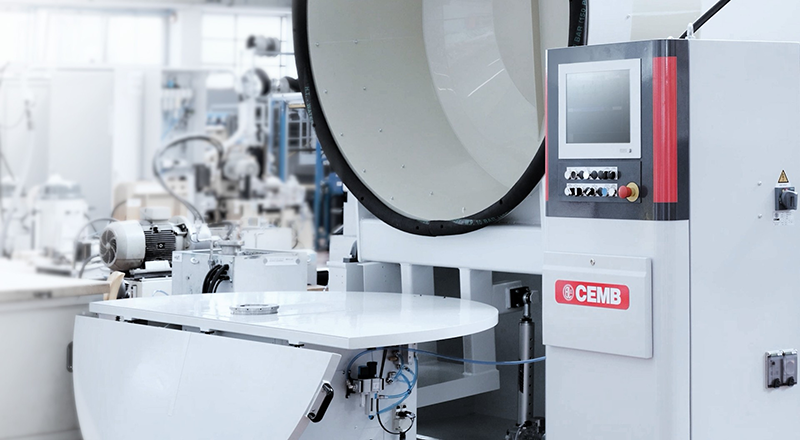

- Operator safety guards with automatic opening and closing.
- Dynamic analysis, multi-plane balancing, polar views, and SAE-compliant reports.
- Full regulatory compliance with aviation and defense industry requirements.
Technical data
| V30 AERO | V50 AERO | V100 AERO | V200 AERO | V500 AERO | |
|---|---|---|---|---|---|
| SAE machine class | 50 | 100 | 250 | 500 | 1000 |
| Maximum rotor weight + tool (kg - lb) | 30-65 | 50-110 | 120-260 | 250-550 | 500-1100 |
| Maximum rotor diameter (mm-inches) | 635-25 | 1200-47 | 1500-59 | 1780-70 | 2160-85 |
| Maximum rotor height (mm-inches) | 254-10 | 900-35 | 510-20 | 770-30 | 770-30 |

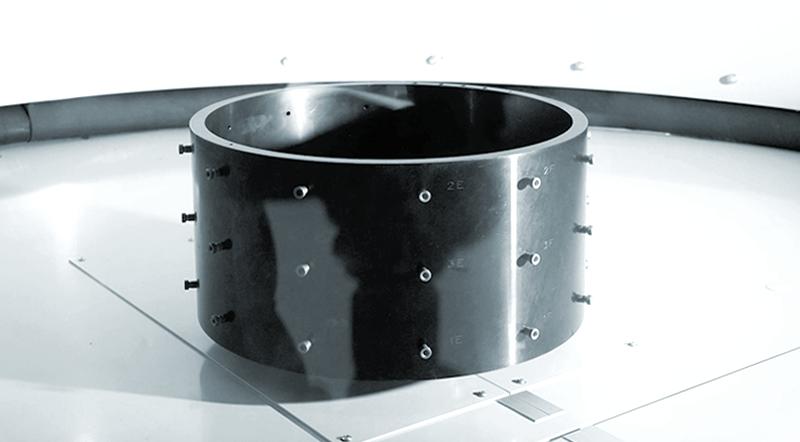

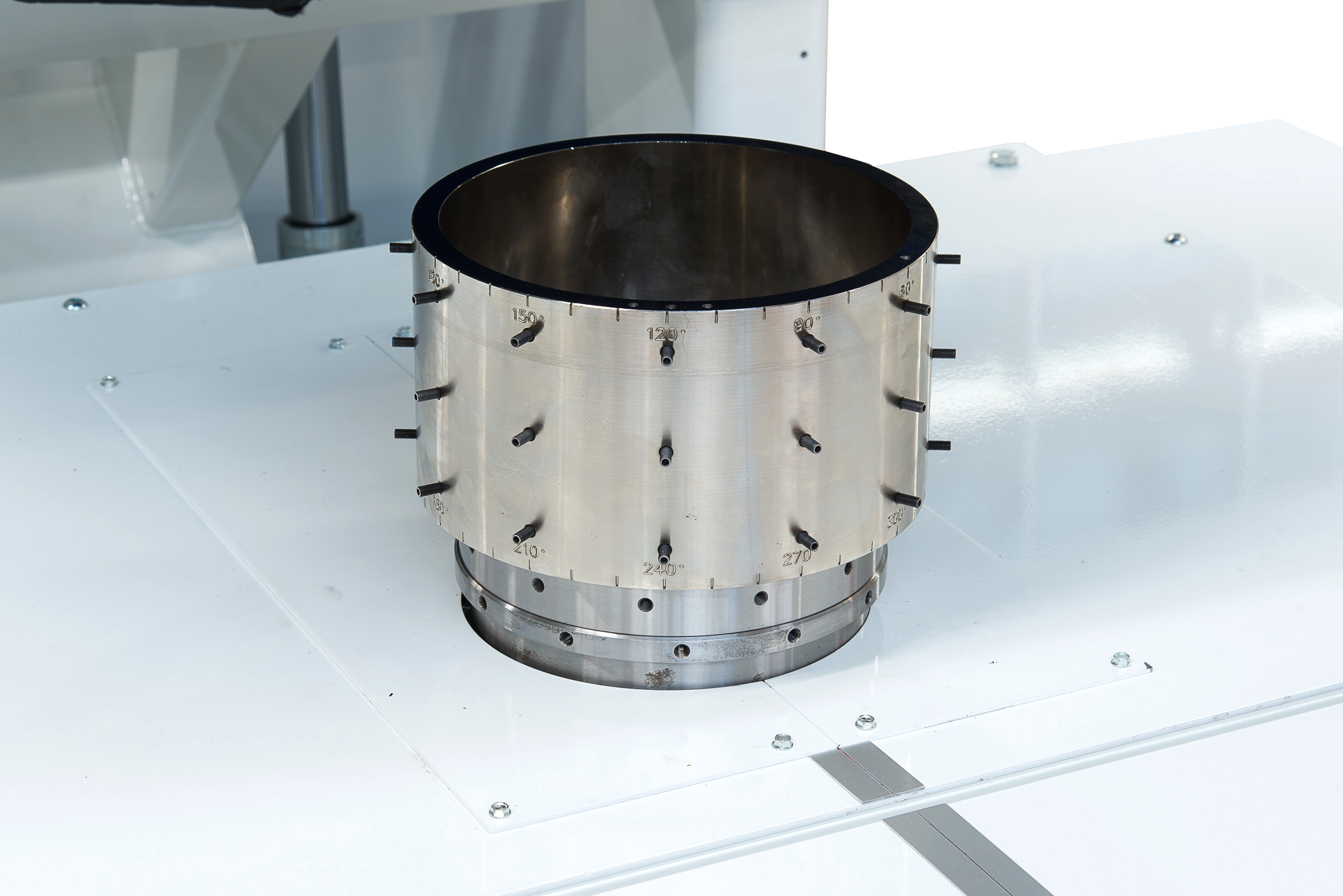

| Master SAE (lb) | 25 | 25 | 80 | 250 | 250 |
| Machine capacity | 30 | 50 | 100 | 200 | 500 |
| One-plane measurement | VUBS30/GV/AERO | VUBS50/GV/AERO | VUBS100/GV/AERO | VUBS200/GV/AERO | VUBS500/GV/AERO |
| Two-plane measurement | VEBS30/GV/AERO | VEBS50/GV/AERO | VEBS100/GV/AERO | VEBS200/GV/AERO | VEBS500/GV/AERO |
