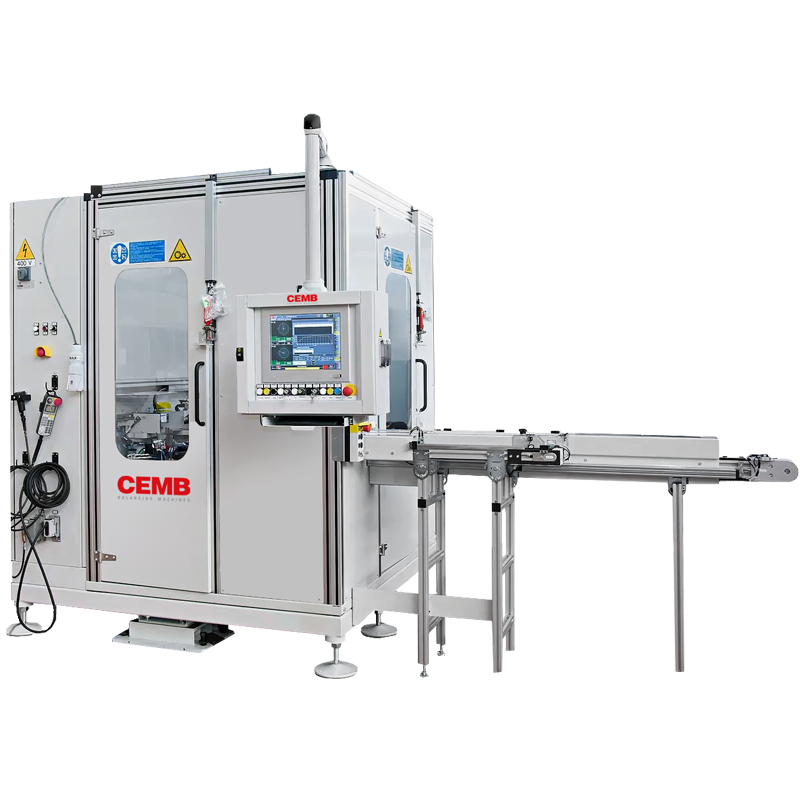

Compressor wheel

Macchina automatica per l’equilibratura di componenti di turbocompressori auto e camion. Correzione dello squilibrio tramite fresatura su nose e back face.

Features

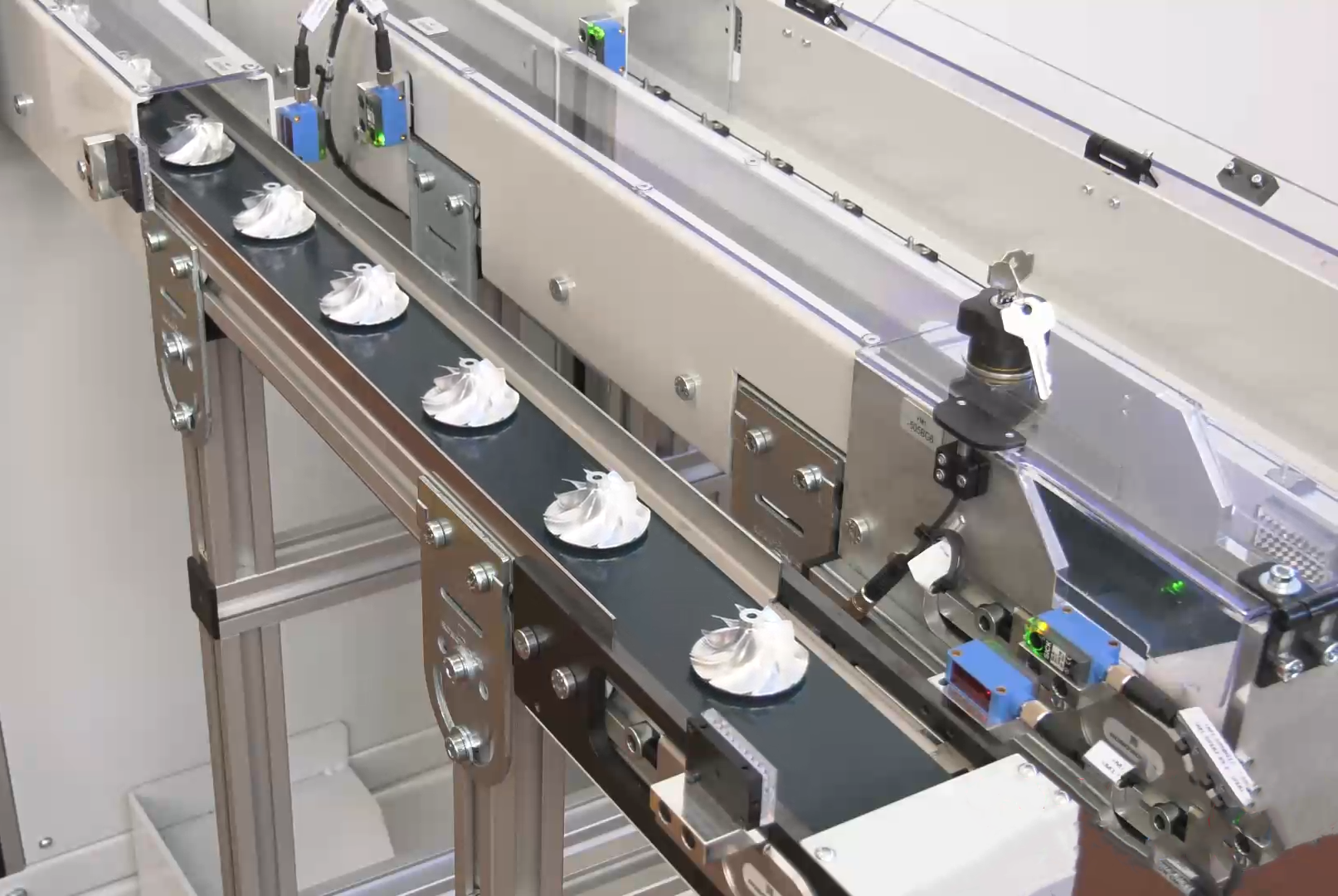

  • Three loading/unloading belts: ensure continuous, smooth handling of parts throughout the operating cycle.
  • Automatic data matrix code detection: enables wheel tracking and integration with supervisory systems.

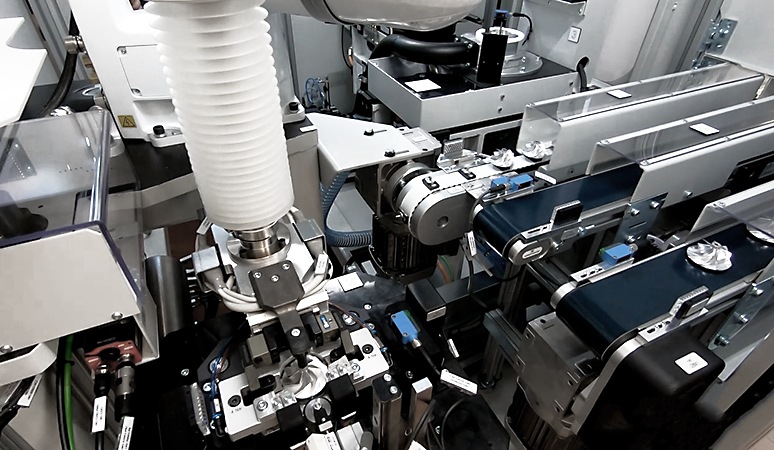

  • SCARA robot for internal wheel movement: ensures fast and precise movement within the machine.
  • Air-bearing measuring station: offers maximum sensitivity and accuracy in balance data collection.

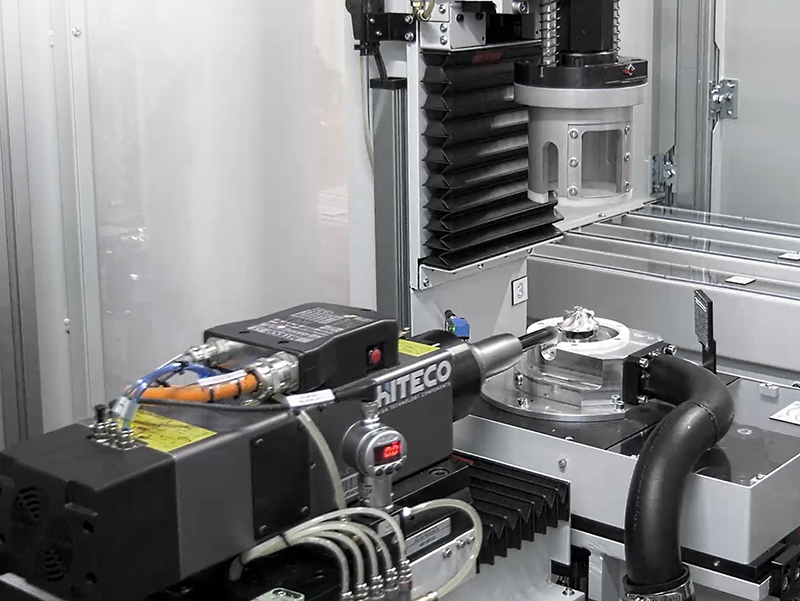

  • A milling station: enables precise and localized correction operations.
  • Automatic chip vacuum unit: keeps the work area clean and improves operational safety.
  • Customized CEMB software: developed in-house for intelligent machine management and interface with MES systems.

Technical data

CWC/A/2ST
Maximum rotor weight (kg) 0,4
Turbine impeller diameter (mm)32-125
Balancing speed (rpm)800-4000
