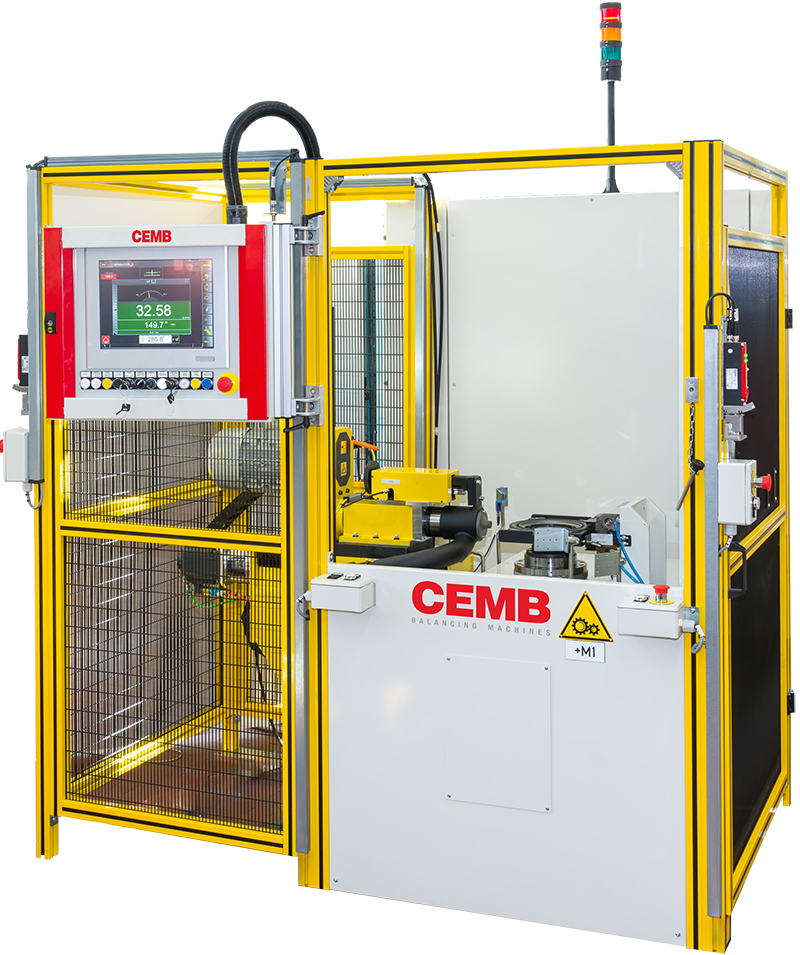

Single-station balancer for flywheels and pulleys

The CEMB single-station compact automaticbalancer handles flywheels and pulleys up to 100 kg. It provides complete measuring, correction and control cycle on the same station and offers correction by vertical, horizontal or inclined drilling, with the possibility of tilting the part.

Features

  • Compact balancing machine capable of performing the entire balancing cycle (measurement, correction, control) on the same station.
  • Designed to balance flywheels and pulleys up to 100 kg, ensuring maximum accuracy, repeatability and process reliability.

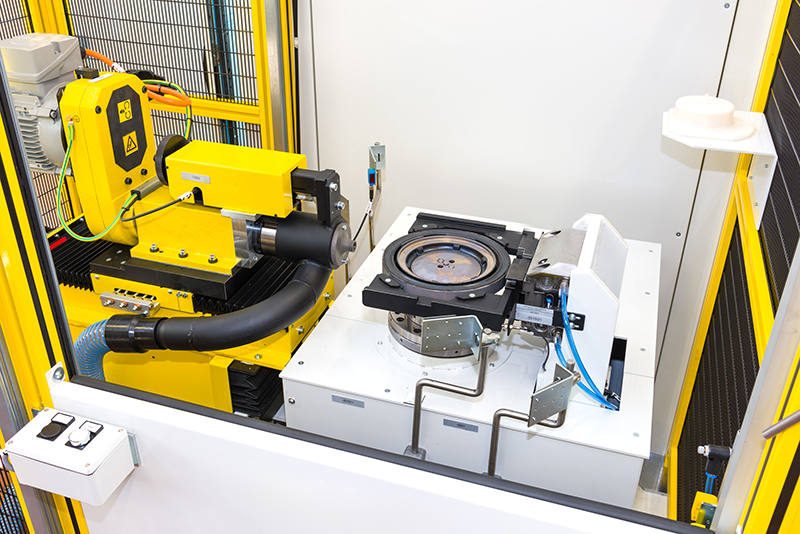

  • Versatile correction by vertical or horizontal drilling to suit different part types and production requirements.
  • Fixing identical to the final application, thanks to special expansion tools that allow precise spline coupling and dedicated machining.

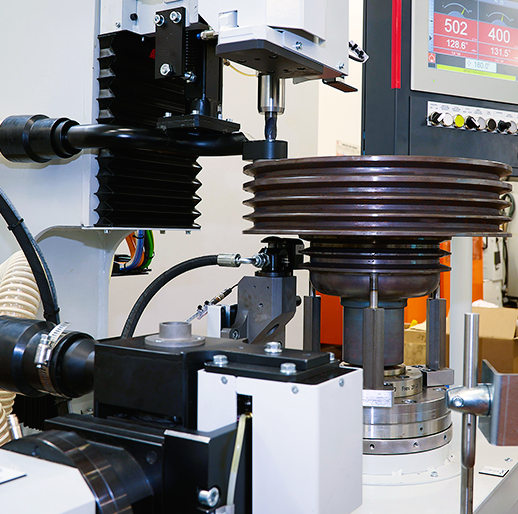

  • Possibility of tilting the workpiece to perform drilling from the opposite side of the clamping plane and with the option of slant drilling.
  • Intuitive and customizable software with touch screen interface, simplified cycle management and quality control reporting.

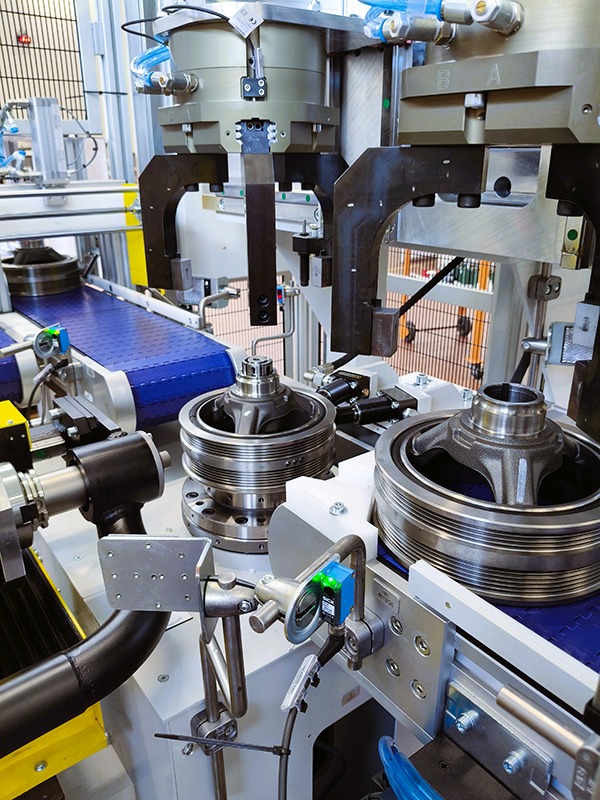

  • Ready for integration into automated lines, with open interfaces for robots and handling systems, ideal for advanced manufacturing processes.

Technical data

VBK5VBK50VBK100
Maximum rotor weight (kg)550100
Maximum rotating diameter (mm)450550750
*possibility of dynamic measurement
Machine capacity550100
Axial drillingVUBK5/UFVUBK50/UFVUBK100/UF
Radial drillingVUBK5/UOVUBK50/UOVUBK100/UO
Axial and radial drillingVUBK5/UF/UOVUBK50/UF/UOVUBK100/UF/UO

Options

Locking tools

Electronic index

Data matrix reader

Tool wear control

Production control with reference piece

Two-spindle head

Laser marking

Micropercussion marking
