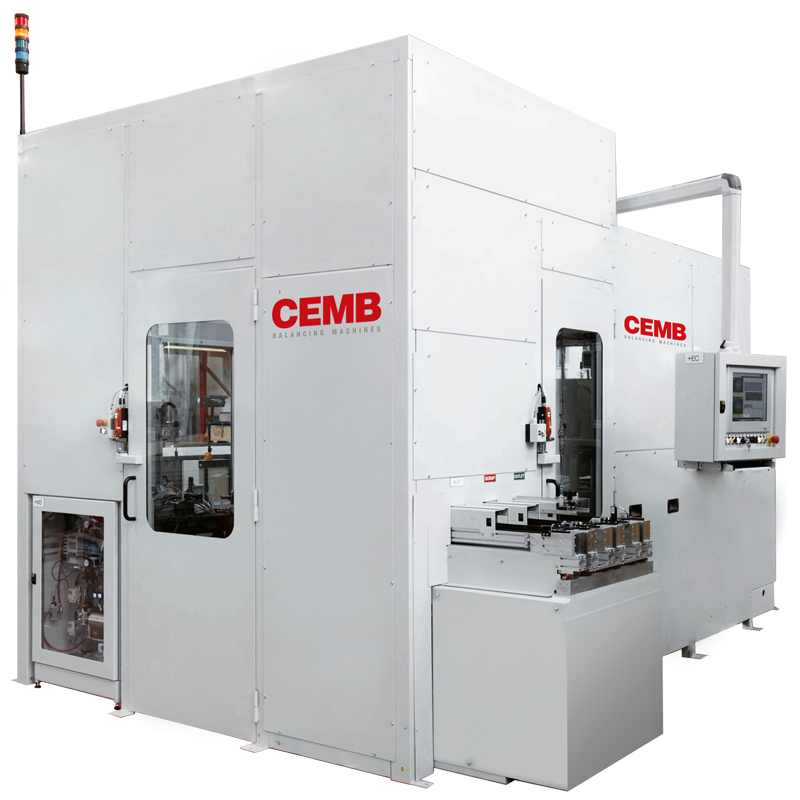

Turbine wheel shaft CV

Automatic machine for the balancing of tcomponents CV. Unbalance correction by two grinding units on the nose and back face.

Features

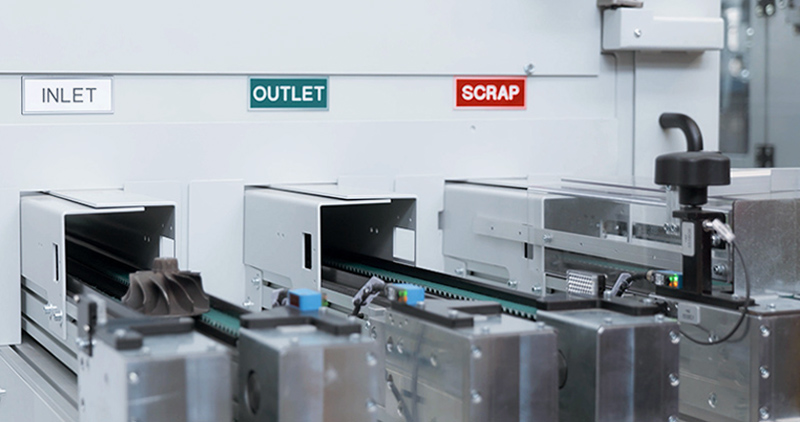

Three rotor loading/unloading belts ensure continuous, smooth handling of parts throughout the operating cycle.
Automatic DMX code detection: enables rotor tracking and integration with supervisory systems.

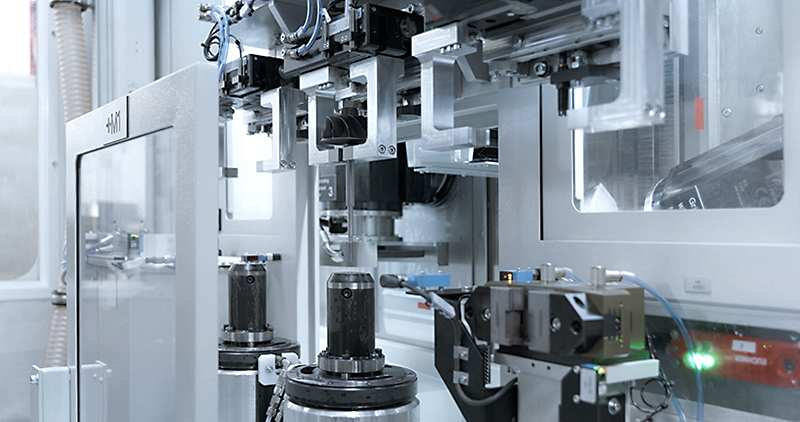

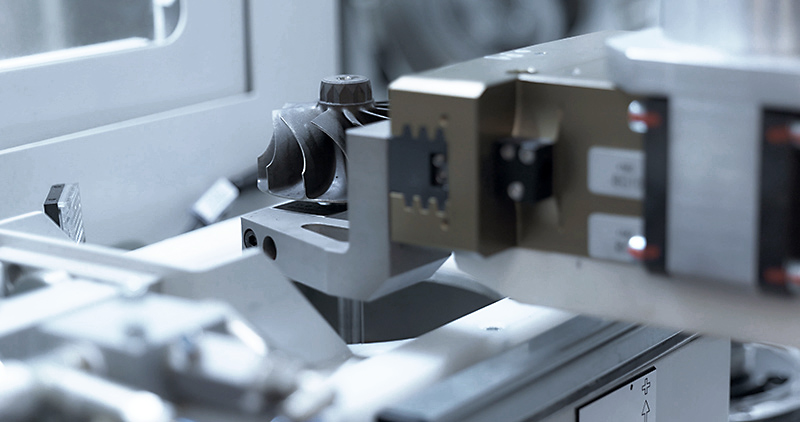

SCARA robot for internal rotor handling: ensures fast and precise movement within the machine.

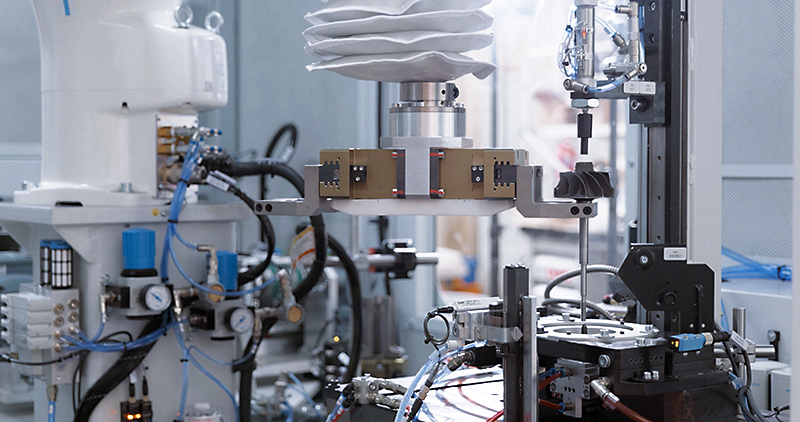

Air-bearing measuring station: offers maximum sensitivity and accuracy in balance data collection.

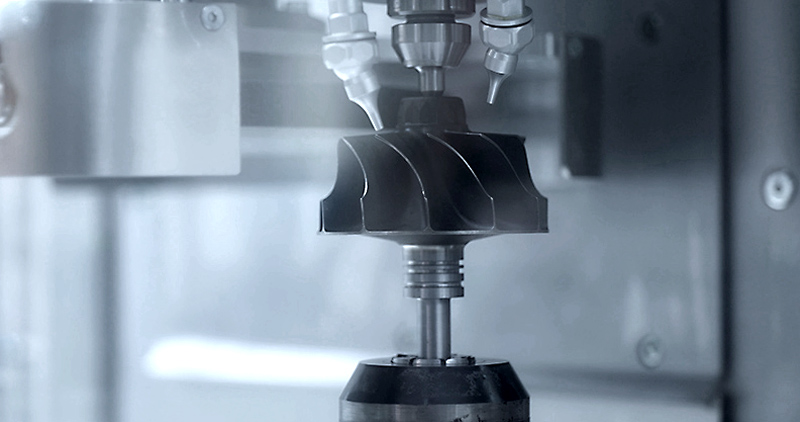

Two grinding stations: allow simultaneous machining for higher productivity.
Grinding with high-pressure lubrication: improves process efficiency and extends tool life.
Automatic pumping and filtration system: ensures cleanliness of the lubrication circuit and operational continuity.
Automatic blowing station: removes residue and dust from the workpiece, improving final quality.
Customized CEMB software: developed in-house for intelligent machine management and interface with MES systems.
