Vibration Equipment Division Automatic balancer for lobe/screw rotors

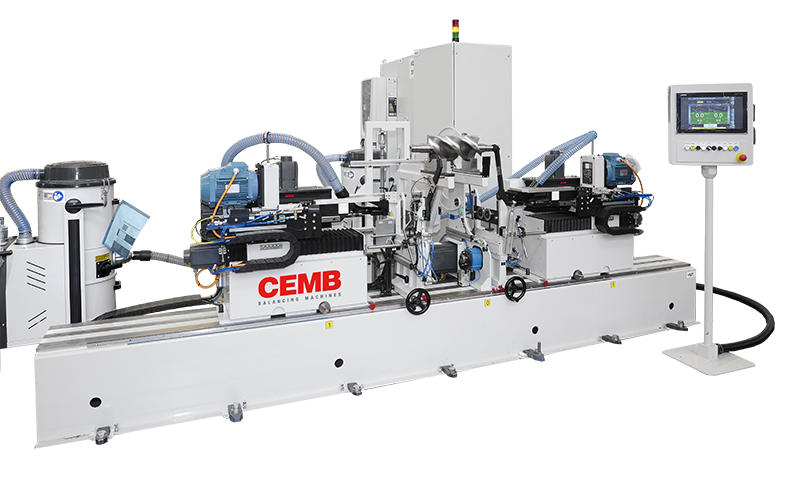

Automatic CEMB balancing machine for lobe or screw rotors up to 300 kg, with correction by drilling performed by two controlled units that automatically intervene in the center of the lobes or the face of the screw profile.
Features
- Automatic balancer for lobe and screw rotors of compressors, pumps and blowers up to 300 kg.
- Drive mode: belt-driven, which automatically closes on the rotor shaft.
- Automatic correction is directly in the machine by two controlled units.
- Absolute accuracy in detecting drilling positions: it normally occurs in the center of the lobes or the center of the loop.
- Fast and easy machine setup: quick type change, reducing downtime and increasing productivity.
- Machine prepared for connection with supervisory and production management systems. It integrates data exchange logic with MES platforms, enabling real-time tracking and monitoring.
- Possibility of integration into automated rotor assembly lines for efficient and automated production.
- Remote assistance and local support available worldwide.
Technical data
| ZBK300/RM | |
|---|---|
| Maximum rotor weight (kg) | 300 |
| Maximum rotor length (mm) | 1500 |
| Maximum rotor outer diameter (mm) | 260 |
| Journal diameter (mm) | 20-100 |
