Vibration Equipment Division Horizontal axis balancing machines from 20,000 to 100,000 kg

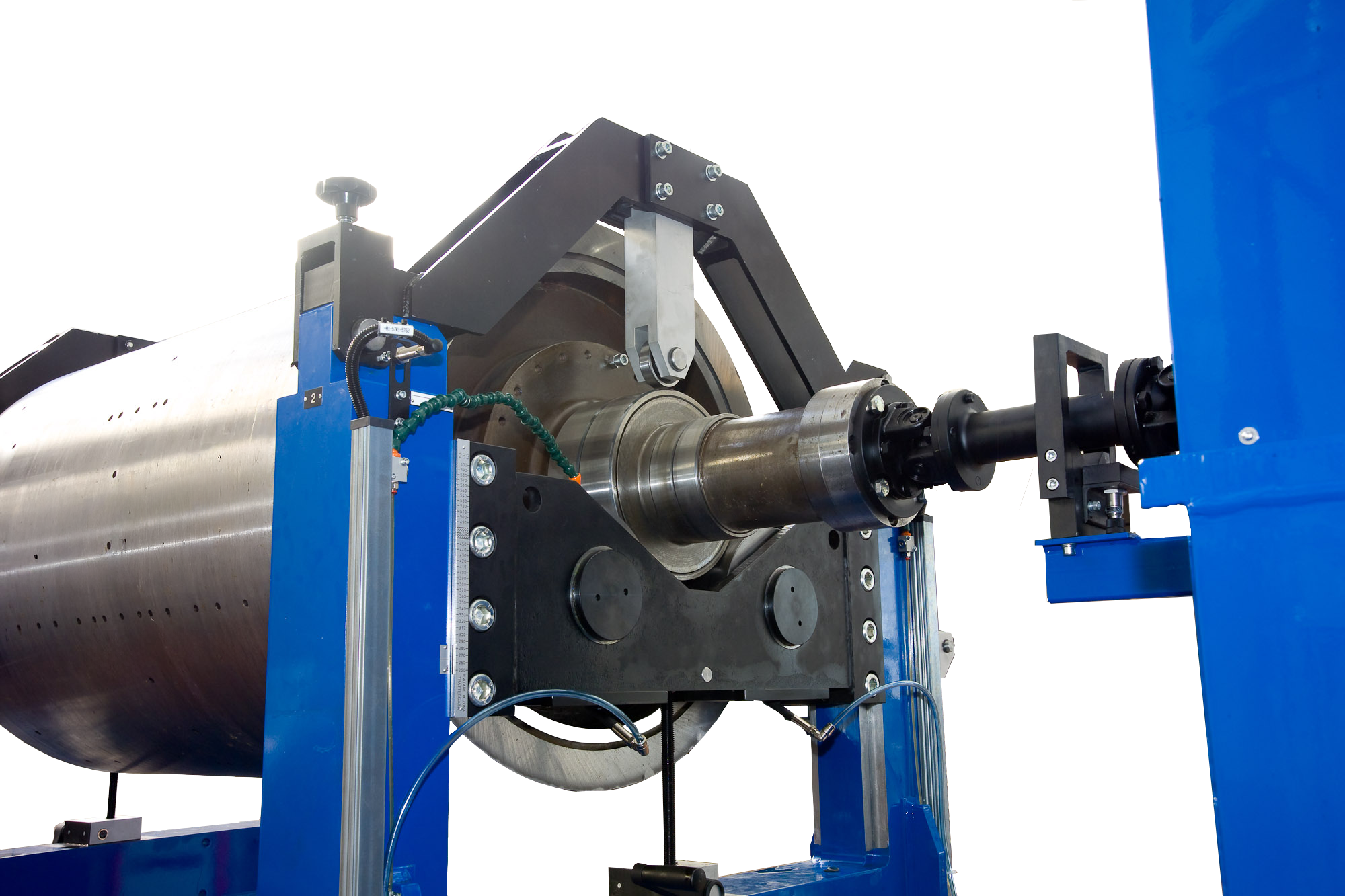

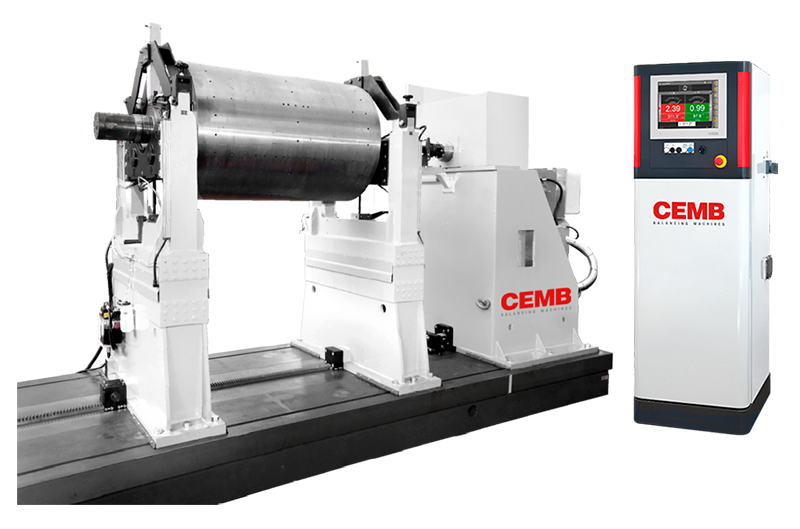

CEMB’s horizontal axis balancing machines are designed for rotors up to 100000 kg. They are suitable for high-precision balancing of heavy rotors, such as those used in generator sets, steam turbines, industrial fans and other heavy-duty applications.
Features
Specifications of CEMB horizontal axis balancing machines:
- Absolute accuracy in unbalance detection thanks to the patented CEMB system, which ensures maximum reliability in balancing processes.
- Quick and intuitive setup: type change in minutes, with optional motorized mounts available to further simplify operations.
- Clear and intuitive user interface: the operator sets parameters directly, minimizing errors and learning time.
- Drive modes: coupled for maximum torque transferable to the rotator, belt-driven for maximum versatility, or combined for all variables.
- Modular configuration to suit each specific case.
- Optimized energy efficiency: thanks to regenerative systems that recover energy generated during braking and feed it back into the grid.
Main applications:
– Rotors for generator sets and power generation plants.
– Steam turbines, components for aerospace and oil & gas industries .
– Industrial fans and large blowers.
– Heavy-duty mechanical transmission parts.
– Paper mill rollers and other large industrial cylinders.
Technical data
| ZB40000 | ZB50000 | ZB100000 | |
|---|---|---|---|
| Maximum rotor weight (kg) | 40000 | 50000 | 100000 |
| Maximum rotor diameter (mm) | 3100 | 3100 | 3100 |
| Rotor journals diameter range (mm) | 40-400 | 40-400 | 40-400 |
| Bedplate (mm) | 1200-19200 | 1200-19200 | 1200-19200 |
| Machine capacity | 40000 | 50000 | 100000 |
| End drive | ZB40000/G/GV | ZB50000/G/GV | ZB100000/G/GV |
| Belt drive | ZB40000/TC/GV | ZB50000/TC/GV | ZB100000/TC/GV |
| End + belt drive | ZB40000/G/TC/GV | ZB50000/G/TC/GV | ZB100000/G/TC/GV |
