CEMB  › Universal Balancing Machines  › Horizontal axis balancing machines from 300 to 8000 kg

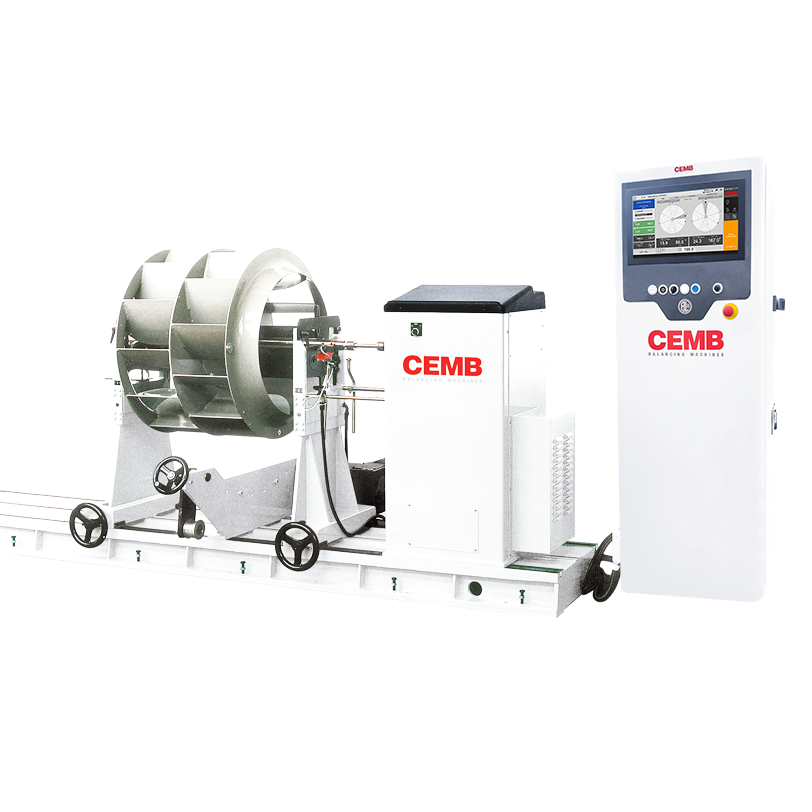

Horizontal axis balancing machines from 300 to 8000 kg

CEMB horizontal axis balancing machines are designed for balancing rotors weighing up to 8000 kg. They are suitable for demanding industrial applications, including generator sets, power turbines, aerospace, oil and gas, paper mill rollers, shredders, augers, and train wheel assembly balancers.



Features

Specifications of CEMB horizontal axis balancing machines:

  • Absolute accuracy in unbalance detection that ensures maximum reliability in balancing processes.
  • Fast and easy machine setup: quick type change, reducing downtime and increasing productivity.
  • Clear and intuitive user interface: the operator does not interpret but sets parameters directly, minimizing errors and learning time.
  • Drive modes: coupled for maximum torque transferable to the rotator, belt-driven for maximum versatility, or combined for all variables.
  • Modular configuration to suit each specific case.
  • High-speed version for balancing flexible rotaries at operating speed.

Main applications:

  • Rotors for generating sets and power plants.
  • Steam turbines, aerospace, and oil & gas components.
  • Industrial fans and large blowers.
  • Transmission organs for heavy-duty applications.
  • Industrial rollers for paper mills and papermaking processes.
  • Train wheel assembly
  • Stalk shredder and branch shredder for agriculture.
  • Augers and drums of oil, construction, and industrial separators.
  • Long shafts and components with a high length-to-diameter ratio.

Technical data

*Maximum mass for the rotor with a symmetrical weight distribution between the two pedestals, for sporadic use the reported figure may be exceeded by up to 50%.
**Maximum mass for the rotor with a symmetrical weight distribution between the two pedestals, for sporadic use the reported figure may be exceeded by up to 25%.
ZB750ZB2000ZB3000ZB4500ZB8000
Maximum rotor weight (kg)7502000300045008000
Maximum rotor diameter (mm)15801580158015801900
Rotor journals diameter range (mm)10-20020-30020-30020-30020-380
Bedplate (mm) 2000-84001200-101501200-101501200-101501200-10150
Machine capacity7502000300045008000
End driveZB750/G/GVZB2000/G/GVZB3000/G/GVZB4500/G/GVZB8000/G/GV
Belt driveZB750/TC/GVZB2000/TC/GVZB3000/TC/GVZB4500/TC/GVZB8000/TC/GV
End + belt driveZB750/G/TC/GVZB2000/G/TC/GVZB3000/G/TC/GVZB4500/G/TC/GVZB8000/G/TC/GV

Options

Additional equipment

Optional software

Rotating ISO

Motorized media translation

Arrow detector

High Speed (HS) Configuration
