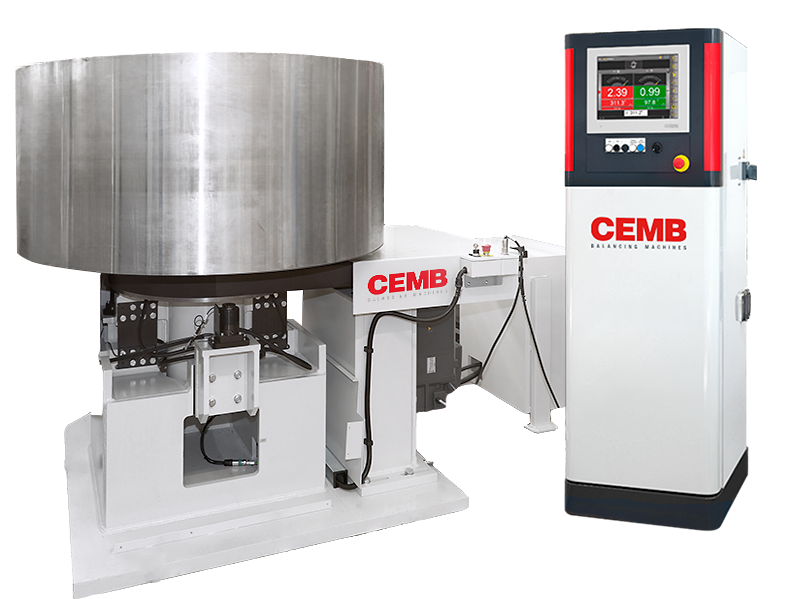

Vibration Equipment Division Vertical axis balancing machines from 1000 to 12,000 kg
CEMB’s vertical-axis balancing machines are designed for balancing rotors up to 12,000 kg and are ideal for heavy-duty applications such as large-format separators, industrial impellers, turbines and railway wheels.
Features
Specifications of CEMB vertical axis balancing machines:
- Absolute accuracy in unbalance detection thanks to the patented CEMB system, which ensures maximum reliability in balancing processes.
- Available in static or dynamic mode to suit different types of components to be balanced.
- The rotator loads directly onto the clamping fixture, without the need for a shaft-tool, simplifying and speeding up production.
- Workpiece clamping on the fixture can be done manually or automatically.
- Automatic electronic tool eccentricity correction system.
- Clear and intuitive user interface: the operator does not interpret but sets parameters directly, minimizing errors and learning time.
Main applications:
- Large compact shaped separators
- Impellers of pumps and fans featuring wide and flat shapes.
- Turbine stages.
- Railway wheels.
Technical data
| VB2000 | VB3000 | VB12000 | |
|---|---|---|---|
| Maximum rotor weight (kg) | 2000 | 3000 | 12000 |
| Maximum rotor diameter with standard protection (mm) | 1400 | 2000 | 4000 |
| Machine capacity | 2000 | 3000 | 12000 |
| One-plane measurement | VUBS2000 | VUBS3000 | VUBS12000 |
| Two-plane measurement | VEBS2000 | VEBS3000 | VEBS12000 |
