Vibration Equipment Division Horizontal balancing machine for compressors and energy turbines

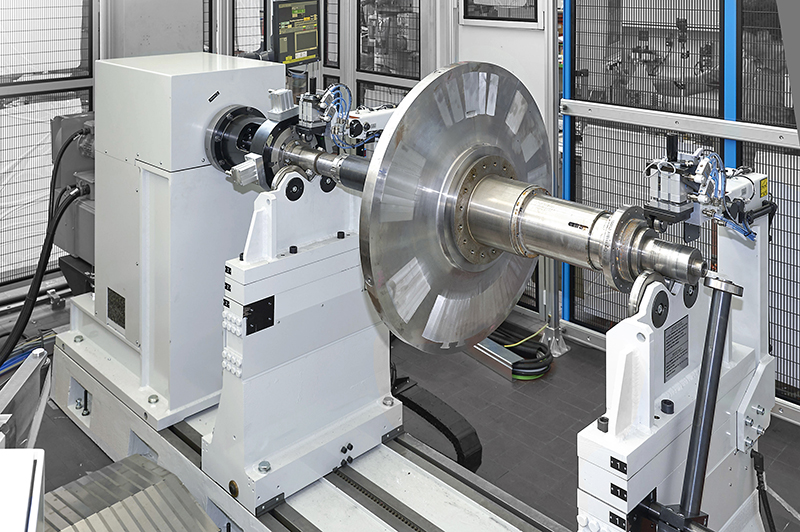

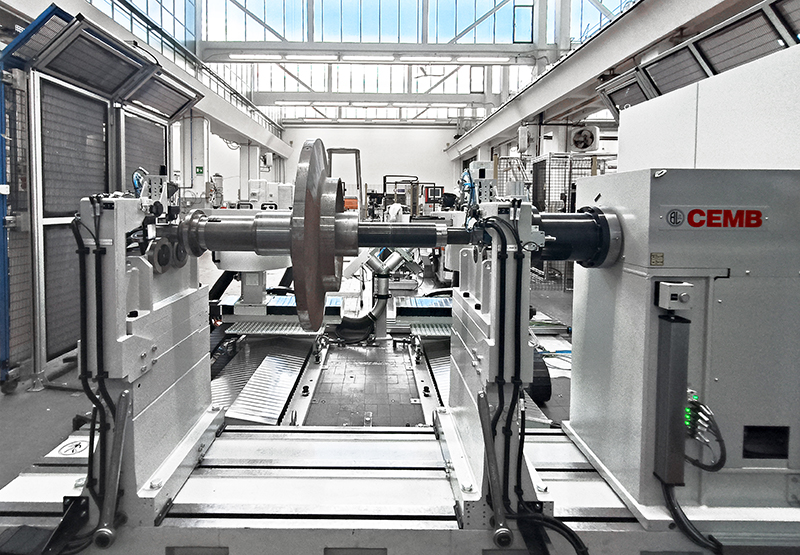

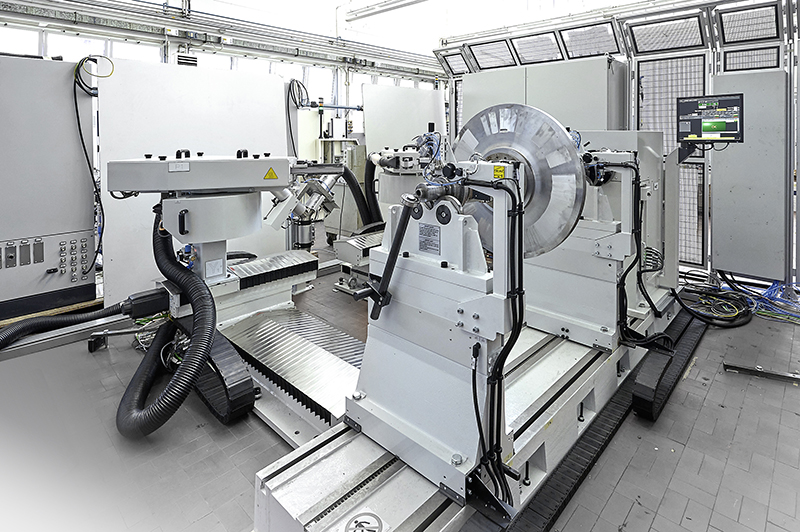

CEMB’s automatic horizontal-axis balancer is designed for balancing stages, turbines, and complete compressors. Correction is accomplished by two belt sanders that remove material from the outer surface of the parts.
Features
- Horizontal solution used to balance complete turbine and compressor assemblies in addition to single large impellers of pumps (or individual stages), impellers, and turbines.
- Fully automatic balancing cycle.

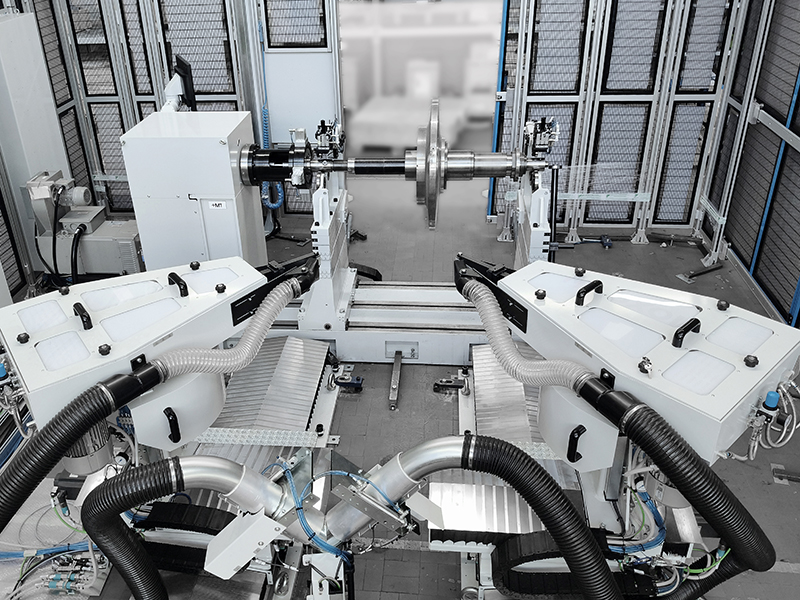

- Correction is done by two belt sanders that remove material from the outer surface of the parts.
- Complete with intelligent matching system to perfectly track the profile even with small or discontinuous radii.
- Blurring function to prevent stepping at the beginning and end of the correction section.
- Self-tuning removal system that adjusts cutting parameters in real time to optimize corrective power.
- Extraction of dust for greater operator safety.
Technical data
| ZBK3000/G/GV/S | ZBK8000/G/GV/S | |
|---|---|---|
| Maximum rotor weight (kg) | 3000 | 8000 |
| Maximum rotor diameter (mm) | 1580 | 1900 |
| Maximum shaft length (mm) | 2000 | 3500 |
| 3000 | 8000 | |
| Machine capacity | ZBK3000/G/GV/S | ZBK8000/G/GV/S |
